IN-WALL SPEAKERS

  1. IN-WALL SPEAKERS

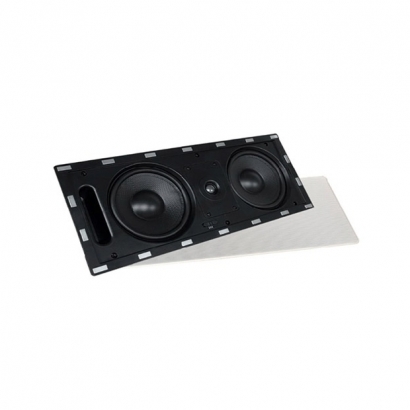

LCR-62D-E

LCR-62D-E

6-1/2" 2-WAY IN-WALL SPEAKER LCR APPLICATION, MAGNETIC GRILL DESIGN
/
DETAIL
. 6-1/2" Woofer x2
. Woofer Magnet:(80x32x20)x2,Y30
. P.P. Woven Cone Rubber Edge
. Voice Coil:25.5mm K.S.V.
. Tweeter: 20mm silk dome
  with switch of 0,-3,-6dB
. Built in 12dB Crossover
. Frequency Response: 67Hz-20KHz
. Sensitivity: 87dB +/- 2dB(1.0M/2.83V)
. Maximum Recommended Amplifier Power: 120W
. Impedance: 8 Ohms
. Overall Dimensions:Dia: 207.2mm(8.1")x487.2mm(19.2")x89.5m(3.5")
. Cutout Dimensions:Dia: 170mm(6.7")x450mm(17.7")x82mm(3.2")
