IN-WALL SPEAKERS
LCR-53E
LCR-53E

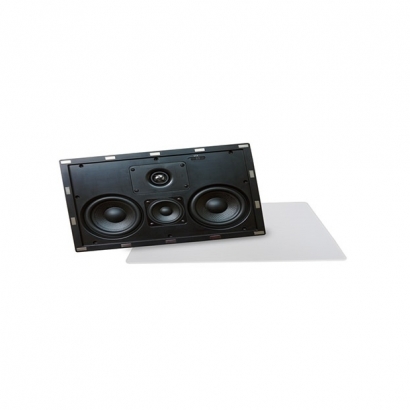

5-1/4" Center Channel In-Wall Speaker
DETAIL
. Woofer Magnet:(80x32x15)x2,Y30
. P.P. Woven Cone Rubber Edge
. Voice Coil:25.5mm K.S.V.
. Midrange 3" P.P. Woven Rubber Edge
. Tweeter: 20mm silk plus titanium dome
. 12dB Crossover,0,-3,-6dB Switch
. Maximum Recommended Amplifier Power:80W
. Frequency Response:72Hz-20KHz
. Sensitivity:86dB+/-2dB(1.0M/2.83V)
. Impedance:8 ohms
. Overall Dimension:275.2mm(10.8")(L)x397.2mm(15.6")(W)
. Cut-out Dimension:238mm(9.4")(L)x360mm(14.2")(W)x79mm(3.1") Depth
