CEILING SPEAKERS
HST-6N-2AL & HST-8N-2AL
HST-6N-2AL & HST-8N-2AL
6.5" & 8" 2-WAY CEILING SPEAKER
DETAIL

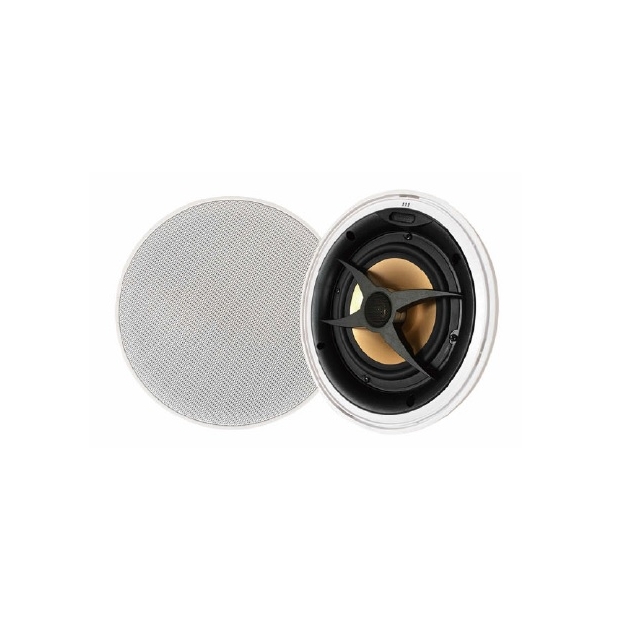

6.5" 2-WAY CEILING SPEAKER
MICRO-FLANGED WITH NEW TWEETER BRIDGE DESIGN
WOOFER MAGNET: 80X32X20, Y30 (15 OZ)
GOLDEN ALUMINIUM CONE RUBBER EDGE
VOICE COIL: 25.5MM, 4F A.S.V.
PIVOTING 20MM SILK + GOLDEN ALUMINIUM DOME TWEETER
BUILD WITH 12dB CROSSOVER & 0. -3,-6dB SWITCH
MAXIMUM AMPLIFIER POWER: 100W
RMS: 50W
IMPEDANCE: 8 OHMS
FREQUENCY RESPONSE: 55Hz- 20KHz
SENSITIVITY: 88dB (1m/1w)
DIMENSION: Φ232mmX95mm
CUT-OUT DIMENSION: Φ205mmX86mm
HST-8N-2AL
8" 2-WAY CEILING SPEAKER
MICRO-FLANGED WITH NEW TWEETER BRIDGE DESIGN
WOOFER MAGNET: 110X45X18, Y30 (25 OZ)
GOLDEN ALUMINIUM CONE RUBBER EDGE
VOICE COIL: 35.5MM, 4F A.S.V.
PIVOTING 20MM SILK + GOLDEN ALUMINIUM DOME TWEETER
BUILD WITH 12dB CROSSOVER & 0. -3,-6dB SWITCH
MAXIMUM AMPLIFIER POWER: 160W
RMS: 80W
IMPEDANCE: 8 OHMS
FREQUENCY RESPONSE: 50Hz- 20KHz
SENSITIVITY: 90dB (1m/1w)
DIMENSION: Φ271mmX108mm
CUT-OUT DIMENSION: Φ245mmX100mm
