IN-WALL SPEAKERS
HSQ-6N-2AL & HSQ-8N-2AL
HSQ-6N-2AL & HSQ-8N-2AL

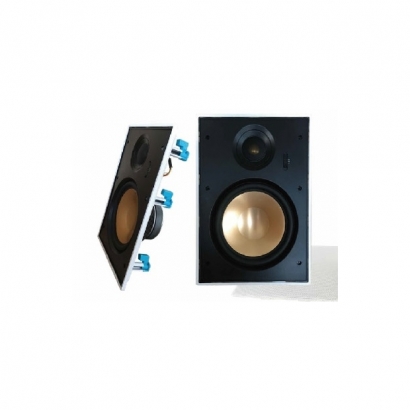

6.5" & 8" 2-WAY IN-WALL SPEAKER
DETAIL
6.5" 2-WAY IN-WALL SPEAKER
MICRO-FLANGED DESIGN
WOOFER MAGNET: 80X32X20, Y30 (15 OZ)
GOLDEN ALUMINIUM CONE RUBBER EDGE
VOICE COIL: 25.5MM, 4F A.S.V.
PIVOTING 25MM SILK + GOLDEN ALUMINIUM DOME TWEETER
BUILD WITH 12dB CROSSOVER & 0. -3,-6dB SWITCH
MAXIMUM AMPLIFIER POWER: 100W
RMS: 50W
IMPEDANCE: 8 OHMS
FREQUENCY RESPONSE: 55Hz- 20KHz
SENSITIVITY: 88dB (1m/1w)
DIMENSION: 296mm(L)X196mm(W)X86mm(D)
CUT-OUT DIMENSION: 270mm(L)X170mm(W)X77mm(D)
HST-8N-2AL
8" 2-WAY IN-WALL SPEAKER
MICRO-FLANGED DESIGN
WOOFER MAGNET: 110X45X18, Y30 (25 OZ)
GOLDEN ALUMINIUM CONE RUBBER EDGE
VOICE COIL: 35.5MM, 4F A.S.V.
PIVOTING 25MM SILK + GOLDEN ALUMINIUM DOME TWEETER
BUILD WITH 12dB CROSSOVER & 0. -3,-6dB SWITCH
MAXIMUM AMPLIFIER POWER: 160W
RMS: 80W
IMPEDANCE: 8 OHMS
FREQUENCY RESPONSE: 50Hz- 20KHz
SENSITIVITY: 90dB (1m/1w)
DIMENSION: 349.5mm(L)X247mm(W)X98mm(D)
CUT-OUT DIMENSION: 323.5mm(L)X221mm(W)X90.5mm(D)
